How to Choose Curtains for Bay Windows: Mounting, Angles, and Finished Length

Bay windows add light and architectural depth, but their angles make curtain planning more involved than dressing a flat window. A standard straight rod may leave uncovered glass, crowd the side returns, or stop the panels from moving smoothly around the bay.

The right solution depends on the number of window sections, the angle between them, the available fixing points, and how much privacy or light control the room needs. Plan the hardware, fabric, and finished length together before ordering.

Why bay windows need special planning

A bay window is made from several planes rather than one flat opening. The hardware must either follow those planes or intentionally bridge them from the outside. The decision affects coverage, curtain movement, the amount of daylight left visible when open, and how the treatment relates to the room.

Identify whether the bay is square, angled, polygonal, or shallow. Also note mullions, deep sills, radiators, window seats, handles, and the wall space beside the bay.

Follow the bay or frame the whole opening

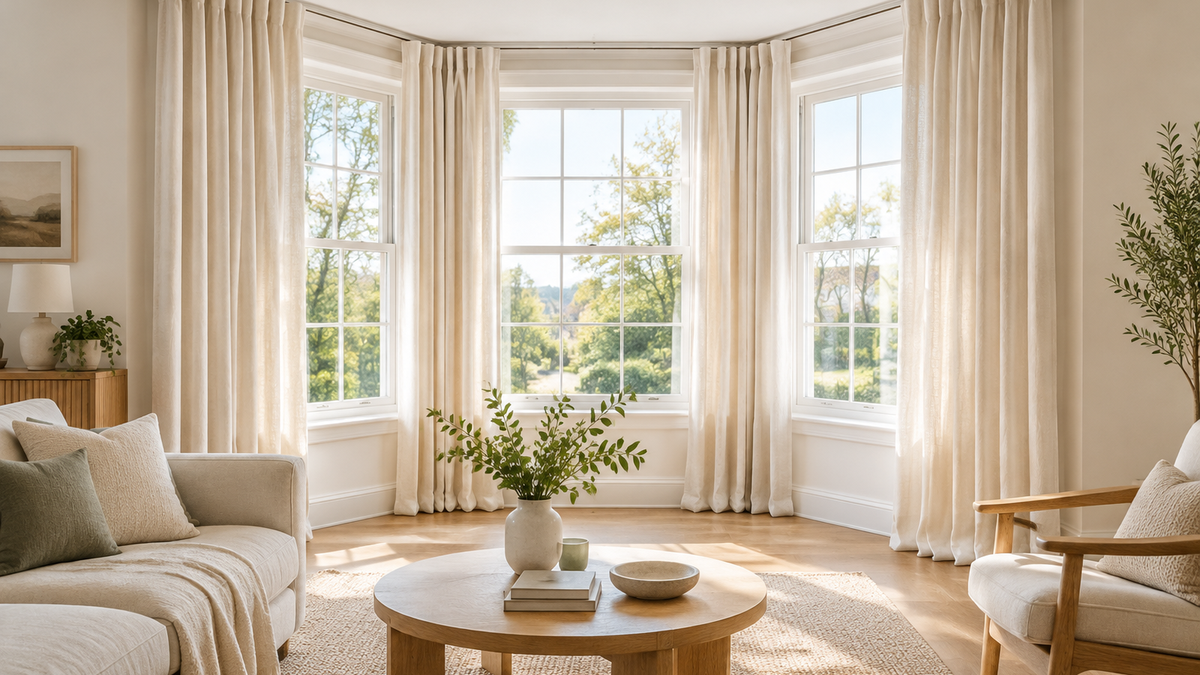

Bay-fitted curtains

A connected rod or track that follows the bay can preserve the architectural shape and give each section coverage. It is useful when privacy and light control are needed across the full window area. Confirm that the system is designed for the actual angles and that carriers or rings can pass each joint.

Straight outside mount

A straight rod or track mounted across the front of the bay can create a simple, unified line. It can work well when the bay is shallow, the surrounding wall is clear, and there is enough room for the curtains to hang in front of the projection. Check that the panels will not crowd furniture or a walkway.

Separate panels

Independent treatments can make sense when the bay has different window heights, a central post, limited corner clearance, or a need for separate light control. Keep the fabric, header, and finished length coordinated so the result still reads as one window treatment.

Compare hardware options

Bay curtain rods

Bay rods can provide a familiar look while turning through multiple angles. Confirm the connectors, bracket positions, center supports, and maximum load. A heavy lined curtain may need more support than a light unlined panel.

Bay curtain tracks

Tracks can offer a quieter profile and smooth movement around the bay. Check the carrier clearance, corner joints, projection, and opening direction. Some systems are made for specific angles, so do not assume a flat track can be adapted to every bay.

Ceiling-mounted hardware

A ceiling-mounted system can be useful when the wall above the bay is narrow or when you want a continuous architectural line. Confirm the ceiling construction and fixing points, then make sure the fabric can clear the sill and return without excessive bulk.

Review the header style guide before choosing a top finish, because pleats and gathered headers occupy different depths on the selected hardware.

Measure each section and angle

Measure the bay at the proposed hardware line, not only across the glass. Record each window section separately and note where the hardware changes direction. If the bay is not symmetrical, do not copy one side's dimensions to the other.

1. Measure the width of every window section from joint to joint.
2. Record the angle or the hardware manufacturer's required joint dimensions.
3. Measure the projection from the main wall to the front of the bay.
4. Check sill depth, handles, mullions, radiators, and window seats.
5. Measure side returns and the space available for stack-back.
6. Measure the proposed hardware line to the finished hem at each side.

Use the curtains measuring guide to keep hardware dimensions separate from finished curtain dimensions.

Choose the finished length

Floor-length panels

Floor length often gives a bay window a balanced vertical finish, especially in living rooms and bedrooms. Check the floor, vents, radiators, and furniture along the full bay. Uneven floors may require separate drops for different sides.

Below-sill panels

A shorter finish can work with a window seat, desk, radiator, or kitchen-style bay. Leave enough clearance to operate the panels without catching the sill or objects placed on it. The stopping point should look intentional.

Inside-recess length

If the curtains sit inside the bay, confirm the narrowest clearance rather than the widest point. The header, fullness, and lining all reduce usable space, so the fabric must not press against the trim or glass.

Plan privacy and light control

Bay windows often receive light from several directions, which can make glare and evening privacy more noticeable. A fitted track can improve coverage, but the panels still need enough overlap at each joint and a return that closes the edges.

• Choose light filtering when you want daylight with softer glare.
• Consider privacy lining for overlooked rooms and street-facing bays.
• Use blackout lining when the room needs stronger darkness for sleep or media viewing.
• Check every joint and side return for potential light gaps.

Compare options in the lining type guide and request free swatches to see opacity and texture in the room's changing light.

Choose fabric and header style

Linen and linen blends can soften the angles of a bay without making the window feel heavy. A structured woven fabric may be better when you want a crisp tailored line. Remember that heavier fabric and lining increase the load on angled hardware and take more room in the recess.

Choose the header with the hardware depth and daily movement in mind. A pleated top may look tailored, while a simpler gathered header can feel relaxed, but both need enough clearance at the joints.

For a natural textured finish, compare options in the linen curtains guide.

Recommendations by room

Living room

A bay-fitted track can preserve the shape of the window while keeping the center glass usable. Keep outside stack-back clear of seating and circulation.

Bedroom

Prioritize privacy and darkness, then check that the chosen system closes all sections without gaps. Lined panels may need stronger support.

Dining area

Use enough projection to keep fabric away from chairs and the table. A lighter textured fabric can soften the bay without crowding it.

Window seat

Decide whether the curtains should frame the seat, sit inside the bay, or extend to the floor at the sides. Measure the seat depth and daily access before choosing length.

Common mistakes to avoid

• Measuring the total width but ignoring individual sections and angles.
• Using a straight rod that leaves side glass uncovered.
• Choosing a deep header without checking sill and corner clearance.
• Forgetting that lined curtains are heavier at angled joints.
• Placing stack-back over a seat, radiator, door, or walkway.
• Assuming a symmetrical-looking bay has identical measurements on both sides.

Before ordering custom curtains

1. Decide whether to follow the bay or frame the whole opening.
2. Confirm the hardware system supports the angles and fixing points.
3. Measure each section, projection, return, and finished drop.
4. Plan the opening direction and stack-back.
5. Choose fabric, header, fullness, and lining with the narrowest clearance in mind.
6. Check the final combination with swatches and hardware specifications.

FAQ

Can you put curtains in a bay window?

Yes. You can use bay-compatible rods or tracks that follow the angles, a straight outside-mounted treatment, or coordinated separate panels when the geometry or furniture calls for it.

Are tracks better for bay windows?

Tracks can make angled movement easier and offer a clean profile, but the system must support the actual bay angles, load, projection, and opening direction.

Should bay window curtains touch the floor?

Floor length often looks balanced in living rooms and bedrooms, but below-sill or inside-recess panels can be more practical around seats, desks, radiators, or narrow clearances.

How do you measure bay window curtains?

Measure every window section at the hardware line, then record angles, projection, returns, stack-back, sill depth, and finished height. Check the narrowest point before ordering.

Final thoughts

Bay windows are easiest to dress when the hardware follows the geometry or deliberately frames it from outside. Start with the angles and fixing points, then coordinate movement, finished length, fabric, header, and lining.

Before ordering, confirm dimensions with the measuring guide, compare header styles, and request free swatches to check the finished fabric in your actual light.
