How to Block Light Leaks Around Blackout Curtains: Side Gaps, Returns, and Overlaps

Many homeowners invest in high-opacity blackout drapes only to wake up to bright ribbons of morning light slicing into their bedrooms. While the fabric itself may block 100% of light, light leakage almost always occurs around the edges: over the top of the rod, past the sides of the window casing, between the two center panels, or off the floor.

Eliminating edge light bleed is not about buying heavier fabric—it is about planning hardware projection, wall returns, and panel overlap as a complete window treatment system. With the right hardware and hanging specifications, you can achieve true room darkness without complicated modifications.

The Four Points of Curtain Light Leakage

Light behaves like water; it searches for any opening between the curtain fabric and the surrounding wall surface. Standard curtain installations leave four primary gaps:

• The Side Perimeter Gap (The "Halo Effect"): Traditional straight rods mount on forward-projecting brackets that place the curtain 2.5 to 4 inches away from the wall, creating wide open vertical light channels on both flanks.
• The Top Gap: Installing rods directly against the top casing allows daylight bouncing off the glass to beam upwards and illuminate the ceiling.
• The Center Meeting Gap: Two drapery panels meeting without an overlap carrier can drift apart slightly, leaving an annoying vertical beam of sunlight down the center.
• The Bottom Floor Gap: Curtains hemmed too short allow daylight to reflect off hardwood, tile, or baseboards into the room.

Solution 1: Install a French Return Rod

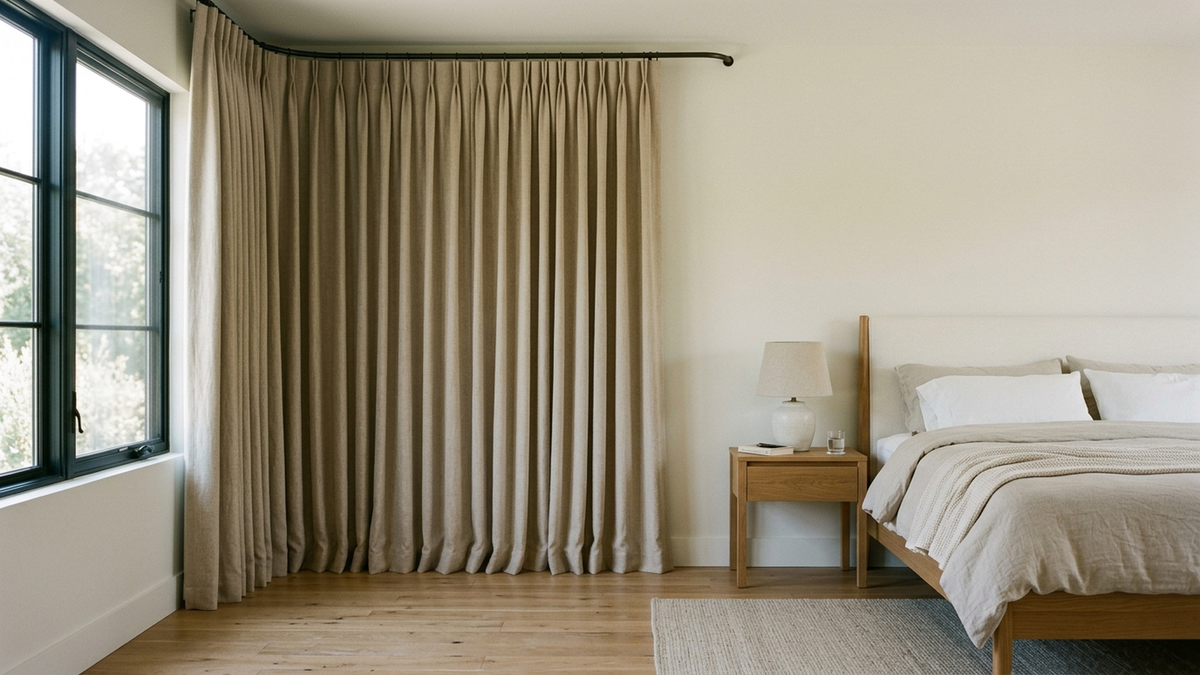

The single most effective hardware upgrade for eliminating side light leaks is a French return curtain rod (often called a wraparound curtain rod). Unlike standard decorative poles capped with finials, a French return rod features curved elbows on both ends that turn 90 degrees back into the wall.

When you draw your curtains closed, the outermost pleat slides along the curve all the way to the drywall mounting flange. This physical barrier seals the sides completely, blocking daylight and preventing cold winter drafts or summer heat transfer.

If you prefer a contemporary architectural aesthetic, a recessed or surface-mounted ceiling track also provides continuous flush coverage against the ceiling line.

Solution 2: Create a Wall Return on Standard Brackets

If you already have a straight decorative rod and do not want to replace your hardware, you can manually create a curtain return:

1. Ensure your drapery panels have enough width to reach from the center meeting point, past the bracket, and back to the wall surface (typically an extra 3.5 to 4.5 inches per panel).
2. Take the outermost curtain ring or hook and place it on the outside of the mounting bracket—between the bracket and the finial.
3. Attach a small cup hook or an adhesive hook to the wall behind the bracket, and hook the outer edge of the header directly to the drywall.

This simple adjustment wraps the fabric around the side profile of the bracket, effectively closing the side gap without new hardware.

Solution 3: Mount the Rod High and Wide

Proper rod placement is essential for both light blocking and room proportions. When hanging blackout curtains, follow these measurements:

• Height: Mount your rod at least 4 to 8 inches above the top of the window frame, or 2 to 3 inches below the ceiling/crown molding. Placing the header higher positions the fabric well above the window glass, trapping sunlight before it can escape into the upper half of the room.
• Width: Extend the rod 6 to 10 inches past the outer edge of the window molding on both left and right sides. This ensures that the outer edges of the fabric rest entirely against solid drywall rather than hovering near the glass edge.

Review the Curtain Measuring Guide to calculate exact bracket positions and finished widths before ordering.

Solution 4: Eliminate Center Panel Gaps

When two drapery panels meet in the middle, a slight breeze or natural fabric tension can pull them apart. To create a light-tight closure:

• Master Overlap Carriers: On traverse rods or ceiling tracks, master carriers are designed to overlap one leading edge over the other by 2 to 3 inches.
• Overlapping Rings or Pins: On standard rings, cross the inner hooks over each other on the rod so the leading pleat of one panel sits in front of the other.
• Magnetic Hem Closures: Discreet magnetic drapery tape sewn into the leading inner edges snaps the panels shut the moment they meet.

Solution 5: Select the Right Lining and Header Style

The internal construction of your custom curtains plays a major role in edge light management:

• 100% Blackout Lining: High-quality multi-pass blackout backing prevents light bleed through the fabric weave and adds substantial weight to keep the curtain hanging flat and flush against the wall. Compare lining specifications in the Curtain Lining Guide.
• Structured Header Styles: Tailored headers like pinch pleats or tailored Euro pleats keep the folds organized in crisp, predictable columns. Grommet headers, by contrast, feature alternating forward-and-backward waves that naturally create deeper top gaps where light can escape around the pole. Explore options in the Curtain Header Style Guide.
• Fabric Density: Dense weaves such as heavy linen blends or velvet drape closer to the wall than stiff synthetic fabrics.

Solution 6: Choose the Correct Floor Clearance

Bottom light reflection is often overlooked. To stop morning light from bouncing up from baseboards or hardwood floors:

• Just Touching ("Kissing" the Floor): The hem lightly grazes the floor surface. This provides an optimal seal against lower light while maintaining clean operation.
• Floating: If you prefer curtains floating above the floor for easy vacuuming, keep the clearance under 3/8 inch. Gaps of 1 inch or higher allow significant sunlight reflection.

Frequently Asked Questions

Why is light still coming through the sides of my blackout curtains?

Blackout curtain fabrics block light passing through the textile, but standard curtain rods project 3 to 4 inches off the wall. This projection creates open channels on both sides where sunlight spills outward. Installing a French return rod or wrapping the outer edge back to the wall resolves this problem.

What is a French return curtain rod?

A French return rod (also known as a wraparound rod) curves back toward the wall at both ends instead of finishing with decorative finials. This allows the drapery panels to wrap flush against the drywall, sealing the perimeter against light leaks and drafts.

How much wider should blackout curtains be than the window frame?

For effective light blocking, extend your rod 6 to 10 inches past the window casing on each side. When ordering custom drapes, include the rod width plus at least 3.5 inches per panel to account for the side return to the wall, along with 2 to 3 inches for center overlap.

Do grommet curtains leak more light than pinch pleat curtains?

Yes. Grommet curtains sit directly on the rod with large metal eyelets, leaving open space above and between folds. In addition, the undulating wave of grommet panels prevents them from wrapping flush against the wall. Pinch pleat curtains hung via pins can be adjusted to sit high over the hardware and close tightly against the wall surface.

Achieve True Room-Darkening Comfort

Creating a truly restful, light-sealed bedroom requires coordinating your curtain dimensions, hardware design, and lining construction. When properly planned, custom drapery delivers unmatched daytime darkness and thermal privacy.
